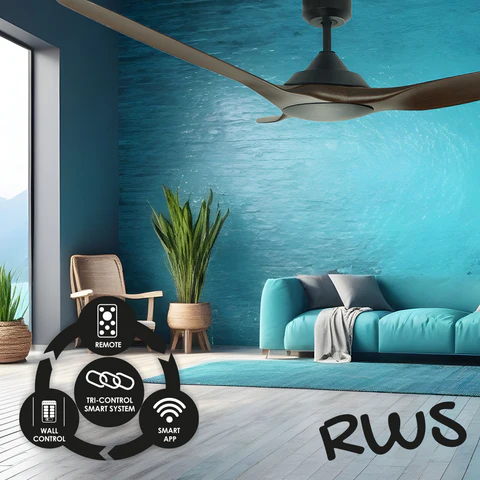

The New modern Raven RWS ceiling fan now comes complete with the option of a Wired DC wall controller with an incorporated isolation switch as well as a remote control and also WIFI compatibility. All 3 options are conveniently able to be used together

The ceiling fan is suitable for both indoor and covered outdoor locations and utilises an energy efficient 35W DC motor and fully reversible for summer & winter settings.

Data Sheet

Blade Material:

• ABS Polymer

Finish:

• Black and Walnut

Capability:

• Fully reversible for Summer/Winter

• Indoor/outdoor areas

• Ultra-efficient DC motor for whisper-quiet and low-cost cooling

• Supports ceiling slopes up to 28°

• Includes 5” & 10” rods in box

• Compatible with Smart Apps: Tuya and Smart Life. These apps are also compatible with third-party services such as Alexa, Google Assistant, and Smart Things.

Remote:

• 6 speed remote control included

Power:

• 35w DC motor

Voltage:

• 240V

Airflow:

• 15 960m³/hr

Dimensions:

• Overall Width: 1320mm

• Overall Height: 312mm (with 5" Rod)

• Overall Height: 439mm (with 10" Rod)

Extension Rod:

• If you have steep raked ceilings, or they are higher than average, an extension rod may be used to maximise the effects of your new ceiling fan.

• Extension Rods are available as a separate part. They come in lengths of 900mm and can be cut to a suitable length by your electrician

Warranty:

• 3 Year In-Home Warranty + 3 Year Motor Warranty

• Suitable for indoors/outdoor enclosed areas

• All fans need to be installed by a licensed Electrician.

• If a fault becomes apparent please call the warranty number provided in the packaging of the ceiling fan, do not attempt to uninstall the ceiling fan.

• The Tax Invoice from the purchase of the fan, as well as the invoice from the licensed electrician will be required to claim warranty.
