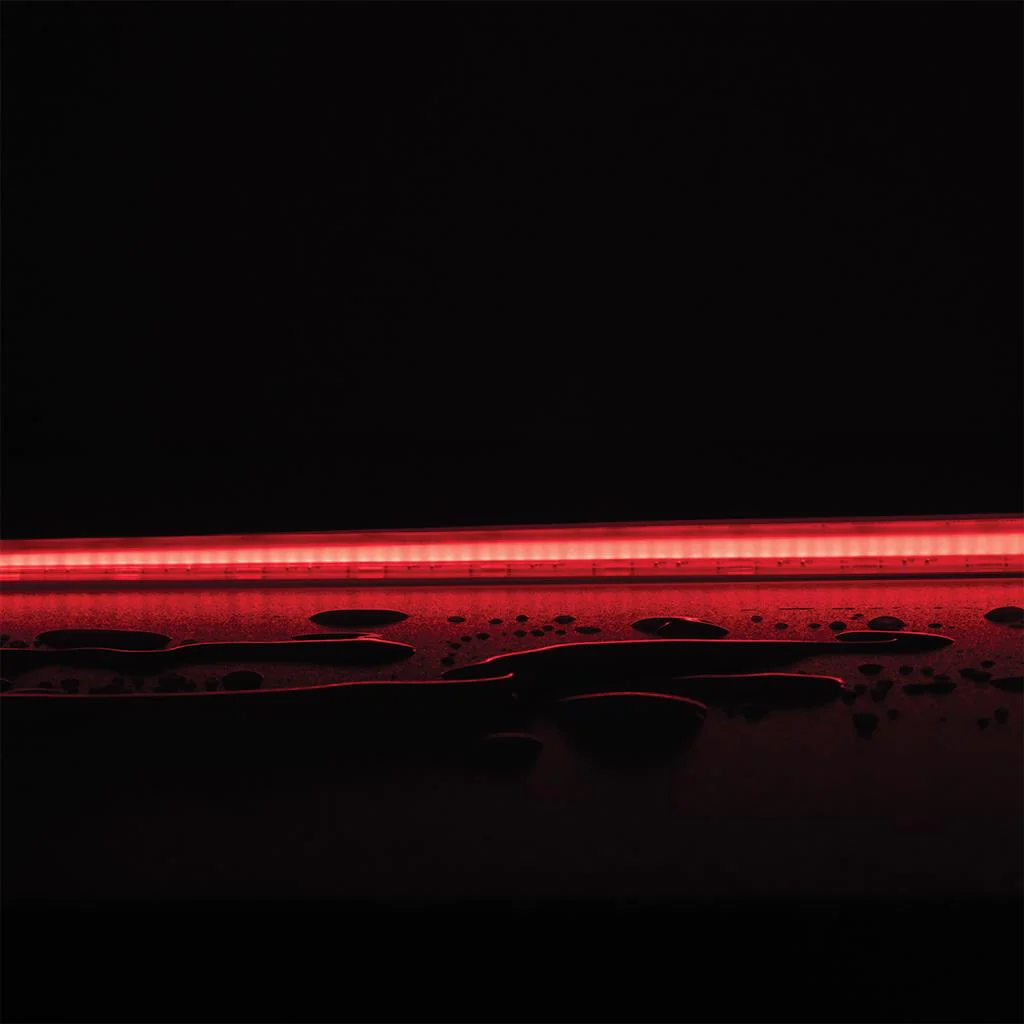

The PLEX-RGB 14w per meter IP67 LED strip incorporates the latest in LED COB chip technology, with true dotless appearance utilising 840 LEDs per metre. Operating on 24V DC allows for less resistive heat and longer run lengths. Longer areas of weldless joints provide a more reliable solution avoiding breaks in continuity.  The PLEX-RGB series comes with an endless choice of colour combinations by mixing Red, Green and Blue (RGB), with the use of the CHAM-BT-RF-5C 5 Channel Controller and LED Driver. Ideal for kitchens, bathrooms, laundry, bars, restaurants, and all indoor highlighting applications.

Please contact our friendly team for help with your next project.

Data Sheet

Finish:

• Clear Silicone Strip

For a clean, diffused finish, many people opt to install the LED strip inside extrusion.

Globe Type:

• Built in LED 840 chips per metre

Wattage:

• 14W per metre

Lumens:

• Red - 102lm

• Green - 340lm

• Blue - 47lm

Colour Temperature:

• RGB

Dimmable:

• Yes, with dimmable driver

Remote:

• Sold separately

Beam Angle:

• 180°

Voltage:

• 24v DC Constant Voltage (Driver and other control gear sold separately)

IP Rating:

• IP67

Dimensions:

• Length: 1000mm

Please Note: cuttable at 25mm intervals

• Width: 12mm

• Height: 6mm

Additional Information:

• Max Cut Length: 5000mm

Warranty:

• 3 Year Warranty

• All LED strip must be installed on an aluminium heat sink, failure to do so WILL VOID WARRANTY.
