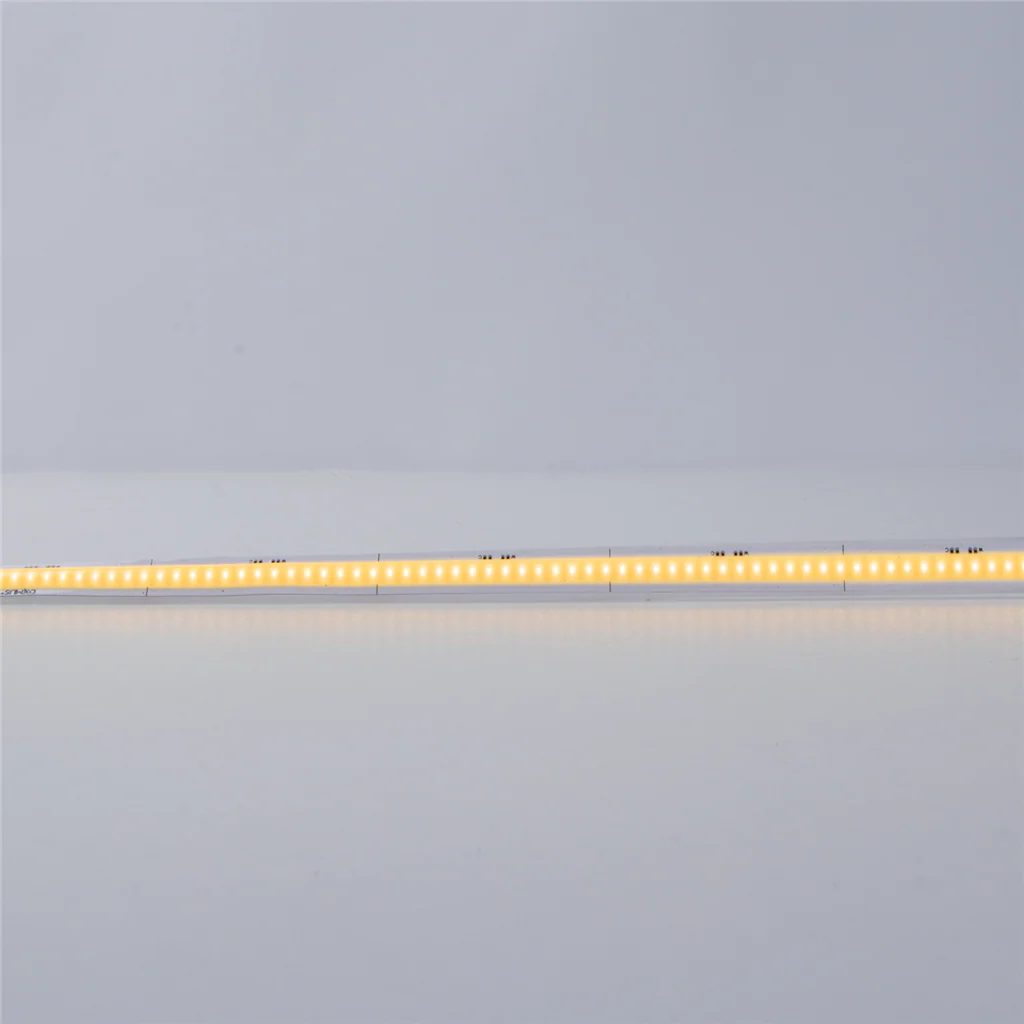

The PLEX-COB-TW 20w per meter IP54 LED strip incorporates the latest in LED COB chip technology, with true dotless appearance utilising 840 LEDs per metre. Operating on 24V DC allows for less resistive heat and longer run lengths. Longer areas of weldless joints provide a more reliable solution avoiding breaks in continuity.
The PLEX-COB-TW series comes with Tuneable White, which offers a selection of White colours from Warm White to White, with the use of a 5 Channel RGBTW Controller and LED Driver. Ideal for kitchens, bathrooms, laundry, bars, restaurants, and all indoor highlighting applications such as pelmet lighting.

Please contact our friendly team for help with your next project.

Data Sheet

Finish:

• Clear Silicone Strip

For a clean, diffused finish, many people opt to install the LED strip inside extrusion.

Globe Type:

• Built in LED 840 chips per metre

Wattage:

• 20W per metre

Lumens:

• Warm White 2700K - 800lm/m

• White 5000K - 1250lm/m

• Daylight 6500K - 1700lm/m

Colour Temperature:

• Tri-Colour - 2700K / 5000K / 6500K

Dimmable:

• Yes, with dimmable driver

Remote:

• Sold separately

Beam Angle:

• 180°

Voltage:

• 24v DC Constant Voltage (Driver and other control gear sold separately)

IP Rating:

• IP54 (Indoor Use Only - Suitable for indoor wet areas)

Dimensions:

• Length: 1000mm

Please Note: cuttable at 50mm intervals

• Width: 10mm

• Height: 2.8mm

Additional Information:

• Max Cut Length: 5000mm

Warranty:

• 3 Year Warranty

• All LED strip must be installed on an aluminium heat sink, failure to do so WILL VOID WARRANTY.
